Overview

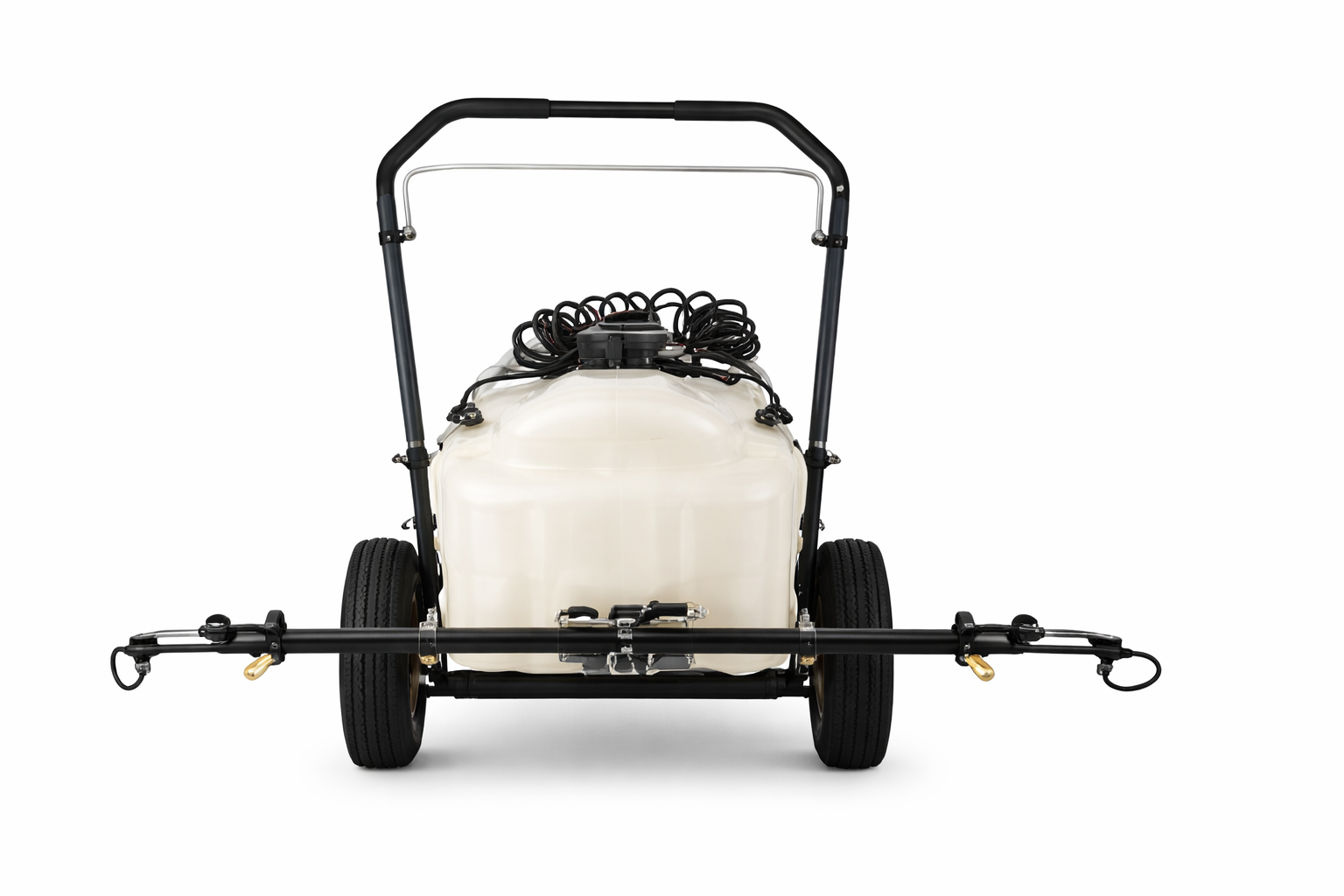

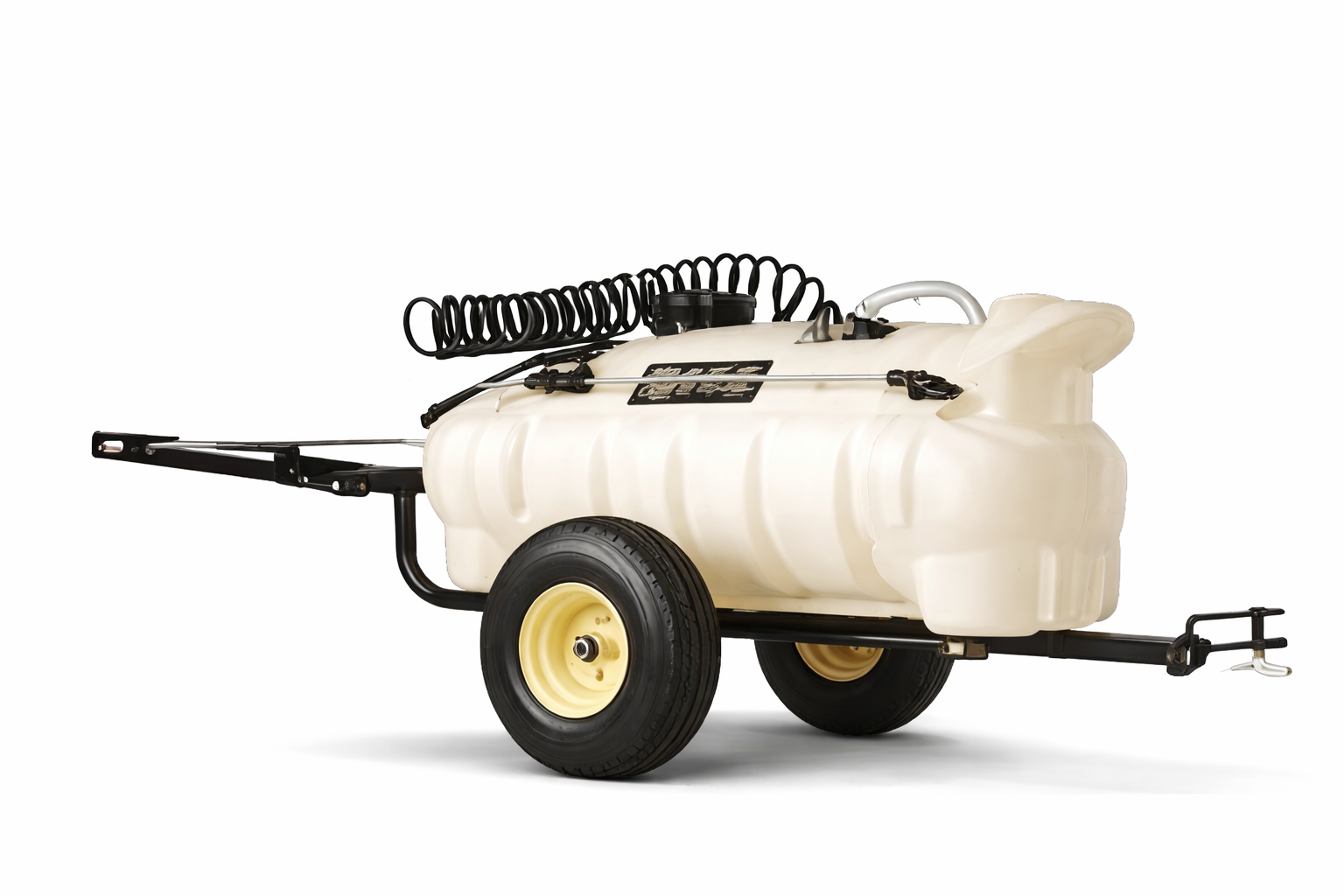

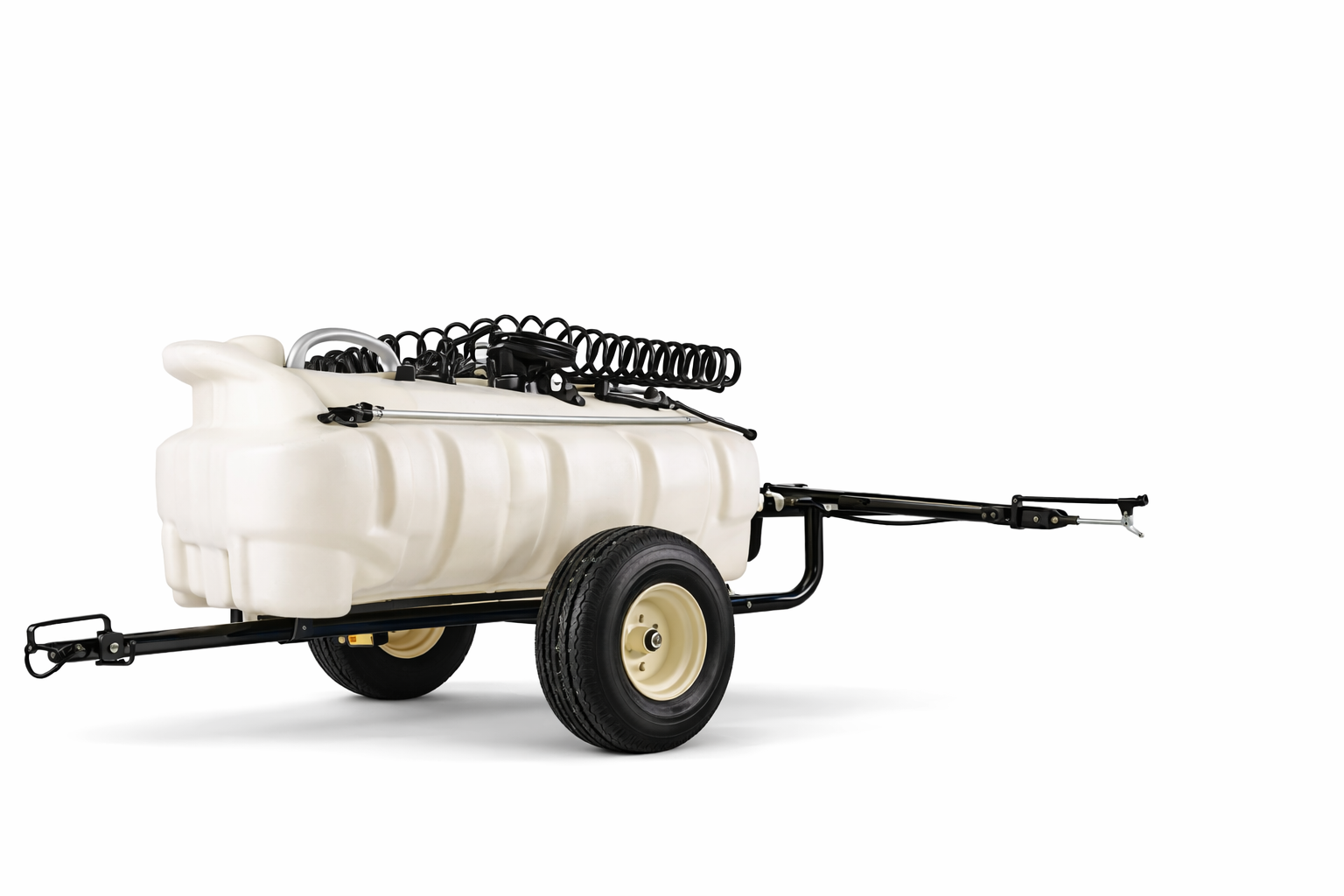

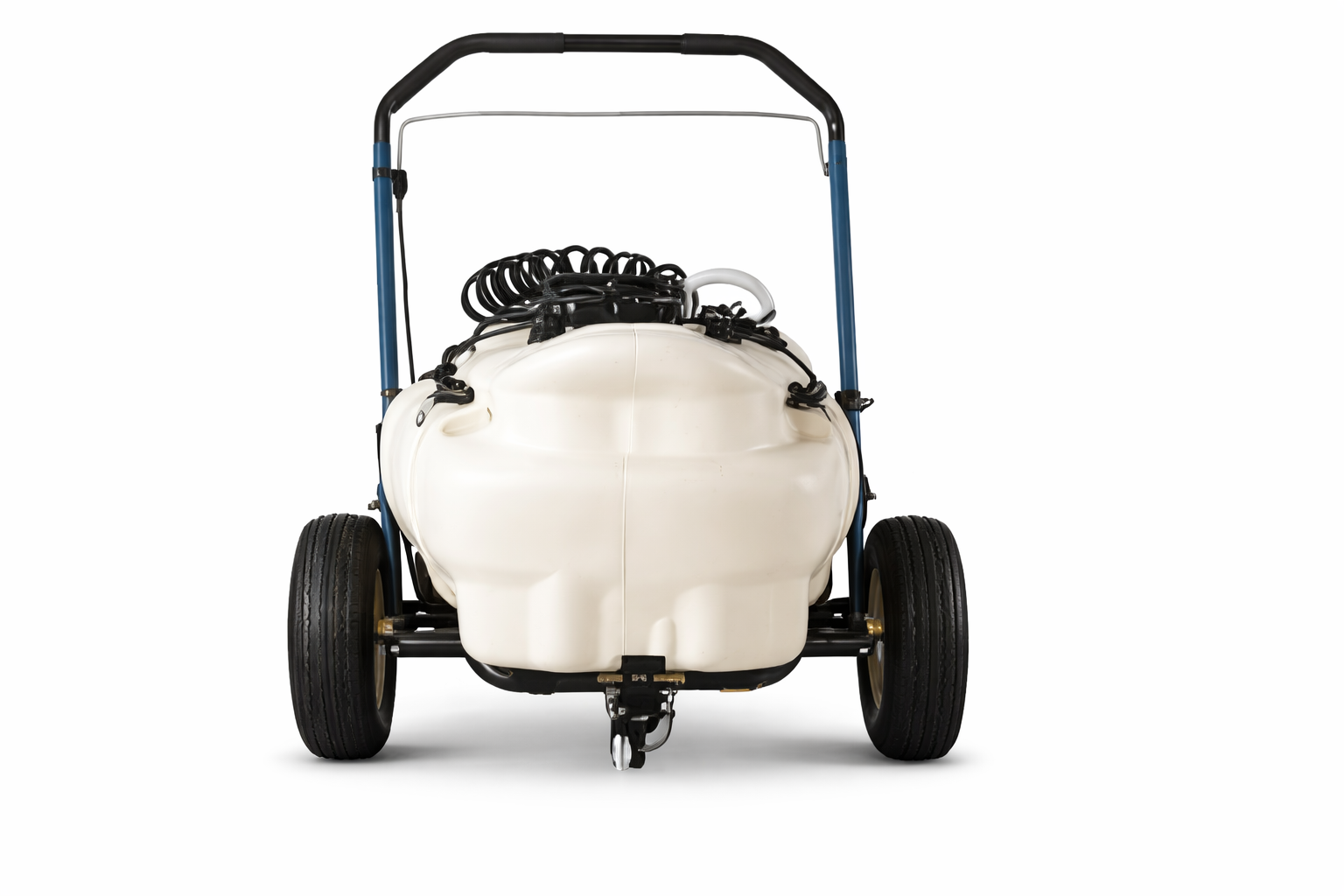

The 25-Gallon Tow-Behind Trailer Sprayer is a professional-grade liquid application system designed for large-scale property maintenance, food plots, and agricultural use. Engineered to be pulled behind an ATV, UTV, or lawn tractor, this sprayer features a heavy-duty, UV-resistant polyethylene tank that is completely corrosion-resistant to fertilizers, herbicides, and pesticides. At its core is a high-performance 12-volt diaphragm pump, which provides consistent pressure for both wide-area boom coverage and precision spot treating.
Efficiency and versatility define this towable unit. It is equipped with a folding broadcast boom that provides an expansive spray swath, allowing you to cover large lawns or pastures in a fraction of the time compared to handheld units. For targeted applications around trees, fence lines, and flower beds, the system includes a deluxe spray wand with a long-reach hose and an adjustable nozzle. Built on a powder-coated steel chassis with pneumatic tires, this 25-gallon sprayer offers the rugged durability and stability needed for traversing uneven terrain and rough acreage.
Top Performance Features
-
12V High-Flow Diaphragm Pump: Delivers reliable, on-demand pressure (up to 60-100 PSI) for uniform liquid distribution and long-range spraying.
-
Folding Multi-Nozzle Boom: Features a wide-coverage design that can be easily folded for transport through narrow gates or for compact storage in a garage.
-
Precision Spot Spray Wand: Includes a handheld wand with an adjustable tip (from fine mist to solid stream) and a high-flex hose for reaching tight or elevated areas.
-
Heavy-Duty Polyethylene Tank: A translucent, blow-molded tank with molded-in gallon markers for easy fluid level monitoring and a large fill lid to prevent spills.
-
Universal Hitch Pin Attachment: Designed with a standard clevis-style hitch that fits virtually all riding mowers, garden tractors, and ATVs.
-
Powder-Coated Steel Frame: A reinforced, rust-resistant chassis provides a low center of gravity to prevent tipping on slopes or uneven ground.
-
Pneumatic Turf Tires: Large, air-filled tires provide excellent flotation and shock absorption, protecting your lawn while ensuring smooth towing at low speeds.
-
In-Line On/Off Switch: Includes a dedicated wiring harness with a remote switch that can be mounted near the operator for instant control of the pump.
Core Specifications
-
Tank Capacity: 25 Gallons
-
Pump Type: 12-Volt Electric Diaphragm
-
Flow Rate: ~2.0 to 2.2 GPM (Gallons Per Minute)
-
Boom Coverage: ~80 to 90 Inches (Model Dependent)
-
Hose Length: 15 to 18 Feet (Reinforced PVC)
-
Spray Distance (Wand): Up to 30 Feet Horizontal / 15 Feet Vertical
-
Tire Size: 10-Inch Pneumatic
-
Hitch Style: Universal Pin Hitch
The Definitive Choice for Large-Acreage Liquid Application
The 25-Gallon Tow-Behind Boom Sprayer is the ultimate workhorse for those who view property management as a high-production task. By merging a high-capacity chemical-resistant tank with a wide-reach folding boom and the convenience of a tow-behind design, this sprayer excels in both speed and accuracy. It is a rugged, highly efficient, and exceptionally versatile tool built to provide professional-grade results and a lifetime of service for your farm, park, or residential estate.
